ماژول ایزولاتور آدرس پذیر مدل KABY



Microprocessed algorithmic addressable element installed as another element inside the loop (It is not addressable –There is not need to configure this element).




Description

Microprocessed algorithmic element installed as another element inside the loop (It is not addressable – There is not need to configure this element).

This is a protection element that is connected into the detection loop, with the aim of isolating stretches with crossed line failures, and allowing therefore the rest of the loop to operate normally.

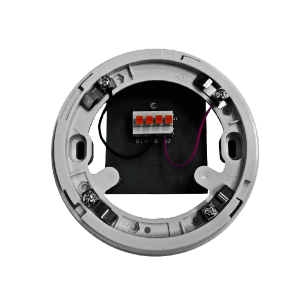

It is supplied installed inside of a high base.  This assembly allows having it in the same place as the detector, making easy the connection of the loop wiring.

We recommend installing a module or element with isolator, minimum every 32 elements of the loop.

The base has two stickers in the outer side with the word “KABY” to allow easy recognition.

The element is feed from the loop connection.

The module is certified according to EN 54-17 Standard, and CE labelled according to the European Regulation of Construction Products (UE) N°305/2011
ALGORITHMIC DIAGRAM_ING
Title: ALGORITHMIC DIAGRAM_ING (0 click)
Caption:
Filename: algorithmic-diagram_ing-15.pdf
Size: 638 kB
KABY-FICHA_ING
Title: KABY-FICHA_ING (0 click)
Caption:
Filename: kaby-ficha_ing.pdf
Size: 260 kB
KABY-MANUAL_MUL
Title: KABY-MANUAL_MUL (0 click)
Caption:
Filename: kaby-manual_mul-2.pdf
Size: 150 kB
